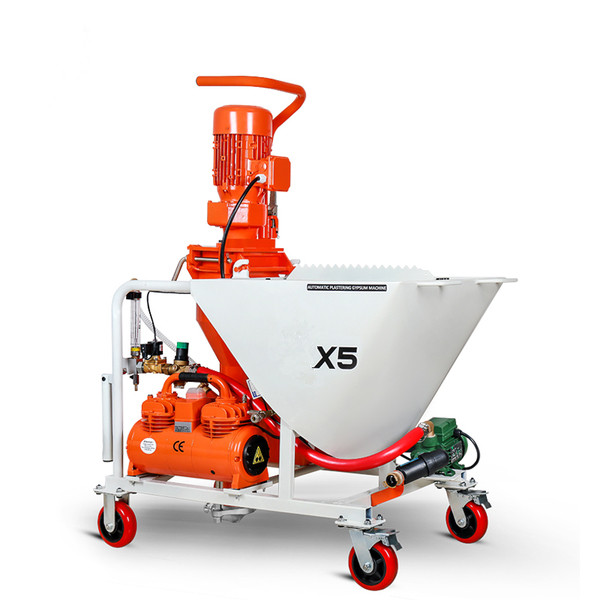

AUTOMATIC PLASTER MACHINE
Electric power : 5.5 KW(380V)
Delivery distance : 30 m
Grain Size : <= 3 mm
Flow : 27 L/min
Working pressure : 30 bar
Hopper volume : 115 L
Weight : 180 kg
Dimensions(L*W*H) : 110*72*150 cm

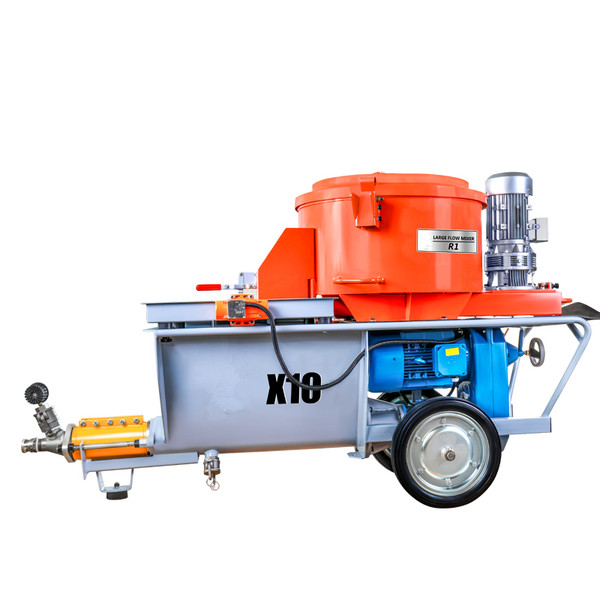

MULTI-FUNCTION MORTAR PLASTER
Power : 7.5 KW(380V)
Power(Mixer) : 2.2 KW
Delivery distance : 100 m
Grain Size : <= 8 mm
Flow : 10-60 L/min
Working pressure : 40 bar
Hopper volume : 150 L / 170 L
Weight : 278 kg
Dimensions(L*W*H) : 110*72*150 cm

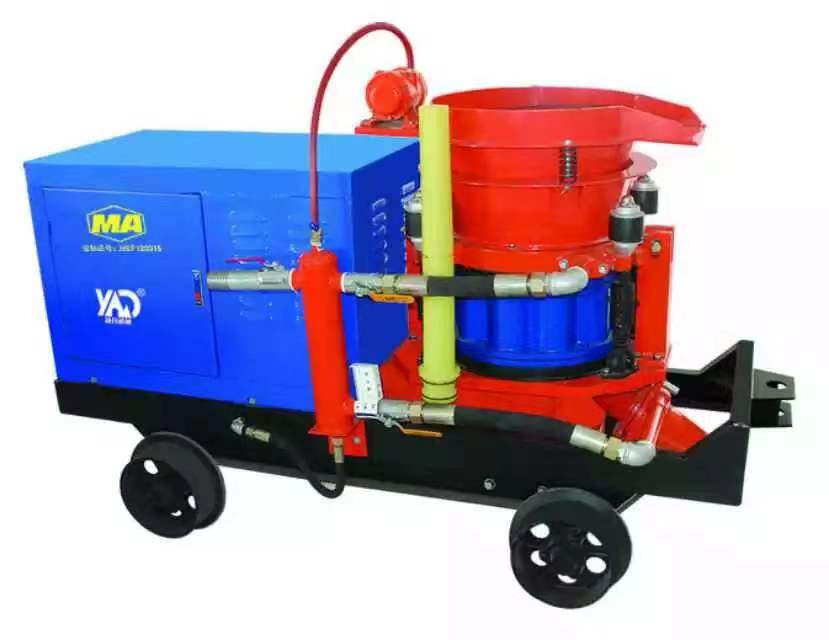

PS-5
Production Capacity: 5m³
Max Wet Spraying Distance: Horizontal 100m,Vertical 30m
Max Dry Spraying Distance: Horizontal 200m,Vertical 50m
Cement Sand Ratio=1:3-5
Water Cement Ratio ≤0.4
Maximum Aggregate Diameter : ≤20mm
Inside Diameter Of Feed Pipe : 51mm
Rotor Diameter : 440mm
Working Pressure : 4~6 bar
Air Consumption : 10 m³/min
Voltage : 380V
Power : 5.5kW
Size : 2000*800*1250mm
Weight : 700Kg
Wheels: Mine using type

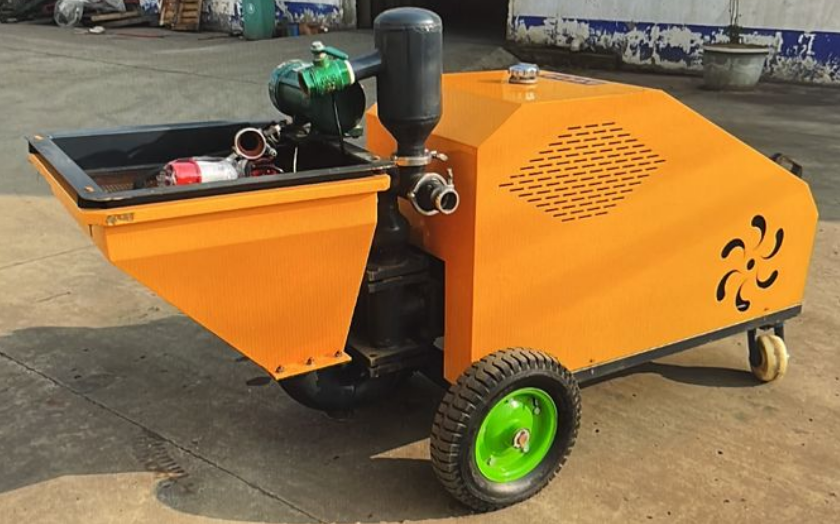

SK-80
Production Capacity: 4~7m³/h
Power : 11kW
Voltage : 380V
Conveying Distance: Horizontal 100m,Vertical 50m
Conveying Pressure: 6Mpa
Hopper Volume : 60L
Inside Diameter Of Feed Pipe : 38mm
Size: 2000*760*1120mm
Weight: 450Kg

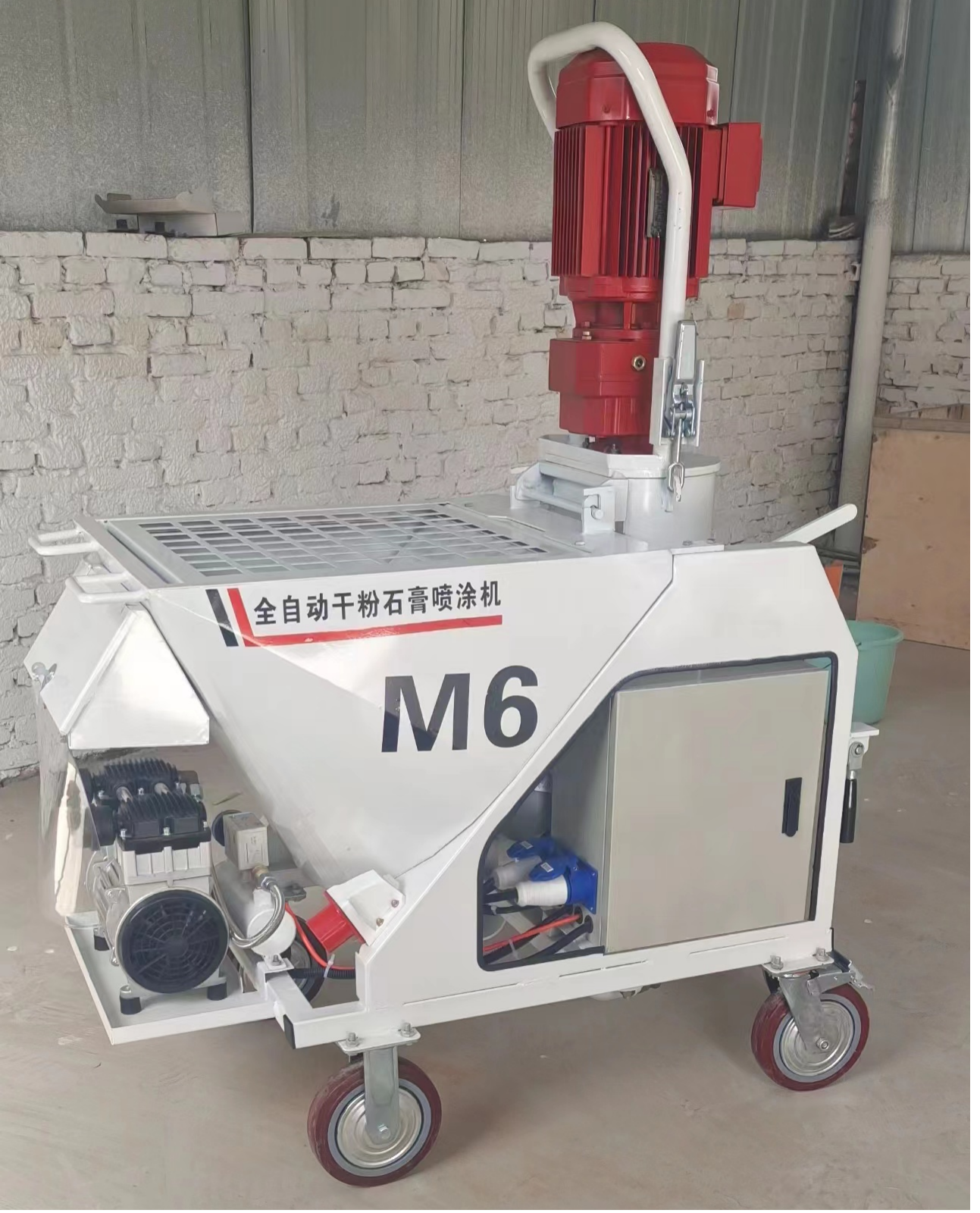

M6
Type: Fully Automatic
Motor Power: 5.5kW
Compressor Power: 3kW
V/Hz/Phase: 380V/50Hz/3P
Delivery Capacity: 100~150㎡/hour
Delivery Pressure: 50bar
Delivery Distance: 50m
Delivery Height: 20m
Max Material Diameter: 5mm
Hopper Volume: 115L
Stuffing Height: 90cm
Size: 1230*720*1550mm
Weight: 200Kg
Wheels: 4pcs
Packing : Wooden box
Accessory: 10m length feed pipe;spray gun;Air rope;water pipe etc

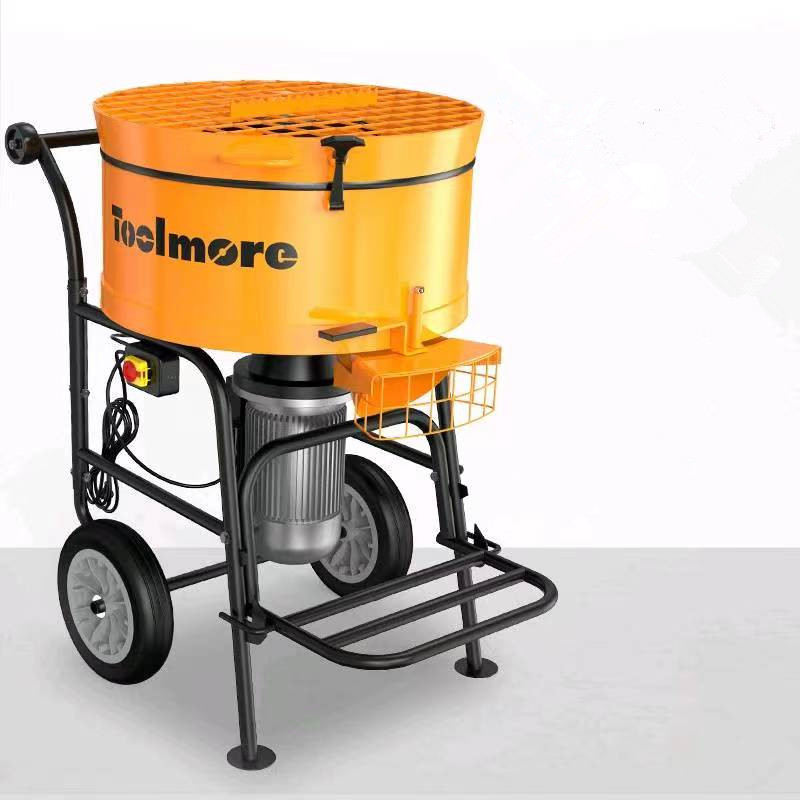

Mortar Mixer - GMM120
Motor Power: 1700W
V/Hz/Phase: 220V/50Hz/1P
Stirring Rate: 35r/min
Bucket Volume: 120L
Stirring Volume: 96L
Wheels: 2pcs
Packing Size: 930*760*1250mm
N.W. : 126Kg
G.W. : 136Kg
Packing : Iron Frame
|
|
